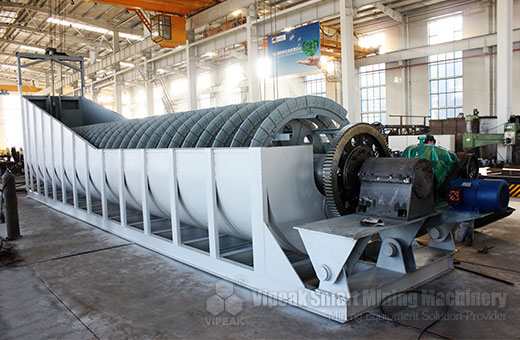

LSX Spiral Sand Washer

LSX sand washing machine is usually used with a sand making equipment and there are two sorts of single spiral type and double spiral type with features of a high degree of washing reasonable structure large capacity low power consumption and less loss of sand available. Especially transmission parts of sand washing machine are water and sand isolated so the failure rate is much lower than the commonly sand washing machine. So it is the best choice for upgrading washing sand industry.

Raw Materials:

Limestone, calcite, coal ash, kaolin, calcium carbonate, gangue, gypsum, grain slag, superfine slag powder, coal dust, bentonite, barite, marble, talc, refractory material

Application:

Cement, silicate product, new building materials, refractory material, chemical fertilizer, nonferrous and ferrous metal beneficiation and glass ceramic industries.

Introduction

LSX spiral sand washer machine can be used for cleaning and separating the powder dust and soil from construction sand. Novel seal structure and reliable transmission of this sand washing device make sure the cleaning effect.

LSX sand washing machine is usually used with a sand making equipment, and there are two sorts of single spiral type and double spiral type, with features of a high degree of washing, reasonable structure, large capacity, low power consumption, and less loss of sand available.

Especially transmission parts of sand washing machine are water and sand isolated, so the failure rate is much lower than the commonly sand washing machine. So it is the best choice for upgrading washing sand industry.
product introduction

Product Advantages

  • 01

    Transmission Device

    • Reliable transmission device makes sure the cleaning effect.
  • 02

    Energy-Efficient

    • Greater capacity smaller power consumption easier operation and maintenance and high efficiency.
  • 03

    Helical Blade

    • Clever design plays a role in separation of powder and soil in the sand stone.
  • 04

    Less Investment and High Benefit

    • Lower price than other series sand washing machine with the same capacity.

Product Specification

Model LSX-920 2LSX-920 LSX-1120 2LSX-1120
Number of Screw(Pcs) 1 2 1 2
Screw Diameter (mm) 920 920 1120 1120
Tub Length (mm) 7585 7585 9750 9750
Feeding Size (mm) ≤10 ≤10 ≤10 ≤10
Capacity (t/h) 100 200 175 350
Screw Speed (r/min) 21 21 17 17
Required Power (KW) 11 11×2 18.5 18.5×2
Water Requirement (t/h) 10-80 20-160 20-150 40-300
Weight (t) 6.2 11.5 10.9 17.8
