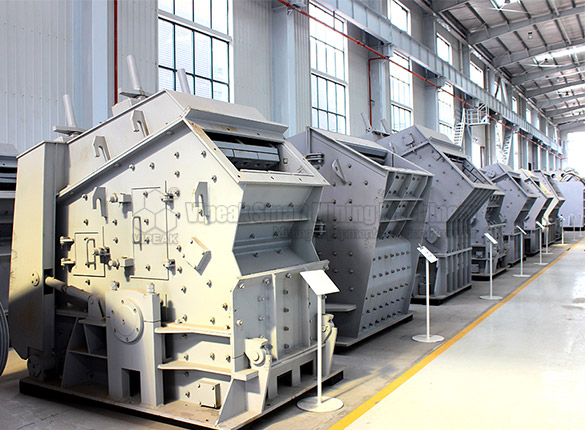

PF Impact Crusher

Impact Crusher is designed with the latest international technology and the world-class manufacturing process. Selection of its main components adopt the most high-end materials. Heavy-duty rotor design and rigorous tests to ensure high quality of the rotor. Therefore Vipeak develops and produces the heavy duty rotor to obtain higher rotational inertia. High wear-resisting material and the best crushing cavity make the excellent crushing performance.

Raw Materials:

granite, marble, basalt, iron ore, cobble, shale, bluestone, coal, cobblestone, construction material

Application:

white fuel, expressway, artificial sand, ore crushing industries,etc.

Get Price Talk Online

Introduction

Impact Crusher is designed with the latest international technology and the world-class manufacturing process.

Selection of its main components adopt the most high-end materials. Heavy-duty rotor design and rigorous tests to ensure high quality of the rotor. Rotor is the "heart" of crusher as well the strict part in the operation, and plays a vital role in the device operation.

Therefore Vipeak develops and produces the heavy duty rotor to obtain higher rotational inertia. High wear-resisting material and the best crushing cavity make the excellent crushing performance.
product introduction

Product Advantages

  • 01

    Cearing Pedestal

    • Entirety bearing pedestal cast steel structure can match up with rack. radial strength of bearing pedestal is increased. High bearing capacity makes machine firmand low maintenance ratio.

  • 02

    Heavy Rotor Design

    • Heavy rotor design is more durable bigger crushing force. Strict quality control high stability longer service life.

  • 03

    High Chrome Hammer Plate

    • Keyless connection easy to maintain high abrasion resistance big impact. Unique plate hammer fixation device makes maintain and disassembly easier.

  • 04

    Impact Plate Adjusting Device

    • Adjusting device is optimized easy to adjust. protective device is adjusted and security of the machine is increased.

Product Specification

Model Specification(mm) Feed Opening(mm) Max.Feeding  Size (mm) Capacity(t/h) Power(kw) Dimension(L×W×H)mm
PF-1007 φ1000×700 400x730 ≤250 15-60 37-55
1800x1600x1800
PF-1010 φ1000×1050 400x1080 ≤300 50-90 55-75
2340x2007x2500
PF-1210 φ1250×1050 400x1080 ≤300 70-130 110-132
2580x2053x2809
PF-1214 φ1250×1400 400x1430 ≤300 90-180 132-160 2582x2203x2809
PF-1315 φ1320×1500 860x1520 ≤350 120-250 180-260 2582x2403x2809
PF-1520 φ1530x2000 980x2020 ≤350 300-600 400 3650x3800x3400
