Vibrating Feeder

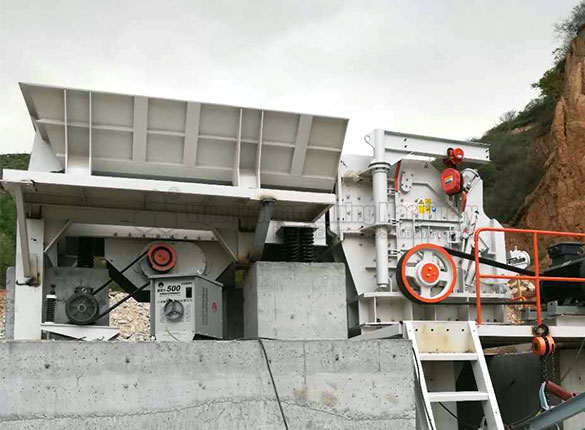

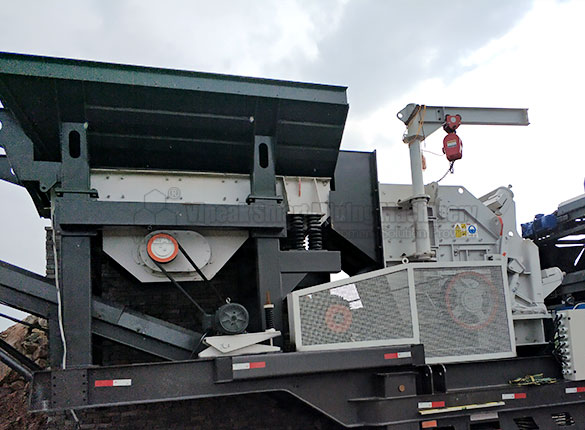

Vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line. Grate structure vibrating feeder is for coarse screening material to make whole system more economical it’s an essential machine in the crushing and screening line.

Raw Materials:

granite, marble, basalt, iron ore, cobble, shale, bluestone, coal, cobblestone, construction waste

Application:

It's applied in crushing and screening line in metallurgy, coal, ore dressing, building materials, chemical industry and abrasive industry

Introduction

Vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line, grate structure vibrating feeder is for coarse screening material to make whole system more economical, it’s an essential machine in the crushing and screening line.

GZD Series Vibrating feeer adopts vibration motor as the source of vibration, which has features of simple structure, high capacity, low maintenance rate. It can be widely used in the fields of metallurgy,construction, stone crushing, etc..

While, ZSW Series Vibrating feeder adopts eccentric block as the source of vibration, gear drove by turns which has low vibrating noise, smooth operation, long usage.It can also pre-screen fine raw materials which makes higher effiency. The design of adjustable fence can prevent the materials from blocking in the gap.
product introduction

Product Advantages

  • 01

    Grate

    • Grate clearance is adjustable according to requirement backplate is removable to simplify maintenance and lengthen service life.
  • 02

    Gear

    • High strength and high high precision gear make stable working of machine.
  • 03

    Motor

    • Famous motor brand clients can choose Siemens brand.
  • 04

    Oil quantity display

    • Clients can check the position of lubricating oil.

Product Specification

Model
Size of Feed
Opening
(mm)
Max.Feeding
Size(mm)
Capacity
(t/h)
Power
(kw)
Weight
(t)
ZSW900×3000 900×3000 400 80-120 7.5 3.9
ZSW960×3800 960×3800 500 120-210 11 4.2
ZSW1100×4200 1100×4200 650 180-400 15 4.8
ZSW1100×4900 1100×4900 650 280-500 15-18.5 5.6
ZSW1300×4900 1300×4900 800 300-550 22 6.7
ZSW1600×6000 1600×6000 1020 500-900 30-45 10.3
