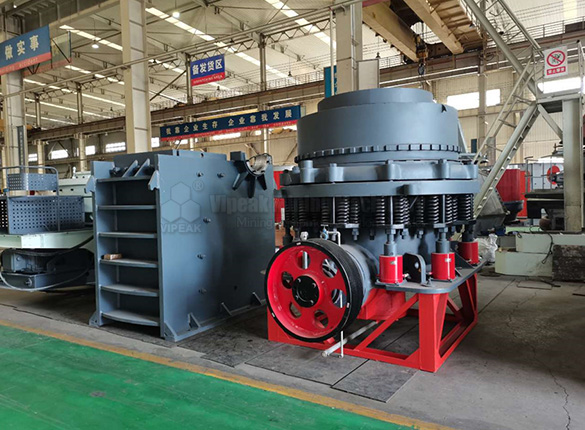

CS High-efficiency Cone Crusher

CS series cone crusher is a improved machine of PY series cone crusher. It’s applied in above medium hardness all kinds of ore and rock.It’s applied in metallurgy construction white fuel traffic chemical engineering construction material to process above medium hardness all kinds of ore and rock it’s the best choice for large scale stone plant and ore crushing.

Raw Materials:

Limestone, calcite, coal ash, kaolin, calcium carbonate, gangue, gypsum, grain slag, superfine slag powder, coal dust, bentonite, barite, marble, talc, refractory material

Application:

Cement, silicate product, new building materials, refractory material, chemical fertilizer, nonferrous and ferrous metal beneficiation and glass ceramic industries.

Get Price Talk Online

Introduction

CS series cone crusher is a improved machine of PY series cone crusher.

It's applied in above medium hardness all kinds of ore and rock. Compared with PY series cone crusher, it has reliable structure, high efficiency, easy adjustment, low cost and many other advanrages.

It's applied in metallurgy, construction, white fuel, traffic, chemical engineering, construction material to process above medium hardness all kinds of ore and rock, it's the best choice for large scale stone plant and ore crushing.
product introduction

Product Advantages

  • 01

    Unique Cavity Design

    • Lamination crushing has a great performance on high hardness material even and good final product shape high capacity.

  • 02

    Dry Oil Seal

    • Unique dry oil seal can protect machine from dust reliable seal Replacement cycle and service life of parts are lengthened.

  • 03

    Overload Protection

    • Spring system is overload protection to protect machine from metel damage.

  • 04

    Rolling Mortar Wall

    • More material is allowed to be taken into machine and discharge volume is increased.

Product Specification

Main Standard:

Model
Mantle
diameter
(feet)
Cavity
Feed opening (mm)
CSS min-max
(mm)
 Capacity(t/h) Power(kw) Weight(t)
Closed
side (mm)
Opening
side (mm)
CSB75
900(3')
 Fine  83 102 9-22 45-91
75(100)
 12.2
Coarse  159 175 13-38 59-163
CSB160 1295(4¼') Fine  109 137 13-31 109-181 185(250) 23.8
Medium  188 210 16-38 132-253
Coarse  216 241 19-51 172-349
CSB240 1650(5½') Fine  188 209 16-38 181-327 240(320) 55
Medium  213 241 22-51 258-417
Coarse  241 268 25-64 299-635

Short Head Standard:
Model
Mantle
diameter
(feet)
Cavity
Feed opening (mm)
CSS min-max
(mm)
 Capacity(t/h) Power(kw) Weight(t)
Closed
side (mm)
Opening
side (mm)
CSD75
900(3')
 Fine  13 41 3-13 27-90
75(100)
 12.2
Coarse  33 60 3-16 27-100
CSD160 1295(4¼') Fine  29 64 3-16 36-163 160(220) 23.8
Medium  54 89 6-16 82-163
Coarse  70 105 10-25 109-227
CSD240 1650(5½') Fine  35 70 5-13 90-209 240(320) 55
Medium  54 89 6-19 136-281
Coarse  98 133 10-25 190-336
