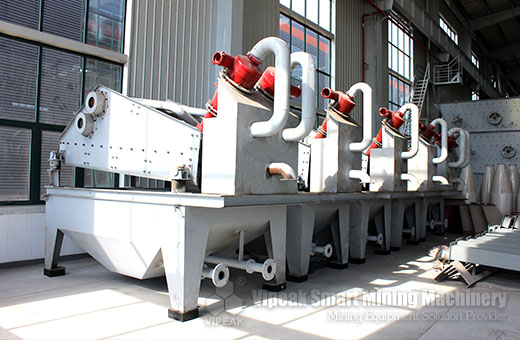

HX Recovery of Fine Sand Device

HX RECOVERY OF FINE SAND DEVICE adopt international advanced technology and combined with the actual situation of our country we designed the Recovery of Fine Sand Device, which is widely used in the water conservancy and hydropower, glass, building materials, fine aggregate, coal preparation plant of course slime recovery and environmental protection projects(Purifying Mud ect) .

Raw Materials:

Limestone, calcite, coal ash, kaolin, calcium carbonate, gangue, gypsum, grain slag, superfine slag powder, coal dust, bentonite, barite, marble, talc, refractory material

Application:

Cement, silicate product, new building materials, refractory material, chemical fertilizer, nonferrous and ferrous metal beneficiation and glass ceramic industries.

Get Price Talk Online

Introduction

HX RECOVERY OF FINE SAND DEVICE adopt international advanced technology and combined with the actual situation of our country we designed the Recovery of Fine Sand Device, which is widely used in the water conservancy and hydropower, glass, building materials, fine aggregate, coal preparation plant of course slime recovery and environmental protection projects(Purifying Mud ect) .

Sand-water mixture will be to the hydrocyclone by the pump; centrifugal grading concentration of fine sand will be provided to the vibrating screen by the desilting mouth.
Vibrating screen as dehydration, fine-grained separation of water-efficient, a small amount of fine sand, mud and other material by the recycle box to the wash trough; the water will be discharged when the level is too high.
By changing the pump speed, changes in the concentration of mortar, regulating the overflow of water, replacing the sand mouth to achieve regulation the fineness modulus. In order to finish the functions of cleaning, dehydration and grade.
product introduction

Product Advantages

  • 01

    Energy-efficient

    • Higner production easier operation and maintenance and higher efficiency.

  • 02

    Rational construction

    • New whole casting and assembly process

  • 03

    Vibrating Screen

    • Vibrating screen uses polyurethane screen mesh and has a longer life than other types of screen mesh without blocking.

  • 04

    Hydrocyclones

    • Cyclone liner composition containing polyurethane improves the life of whole sand recycling device which is conducive to concentrated slurry and liquid clarification.

Product Specification

Model Material
 Power (kw)
Vibrating Screen
Model   Power（kw） Material
Capacity
3
(m /h)
VKS- 250 Cr26 11 06x2.25 0.75KW×2
High
molecular
polyurethane
 30- 60
VKS- 300 Cr26 15 08x2.25 0.75KW×2 60- 100
VKS- 350 Cr26 18.5 10x2.25 1.1KW×2 70- 130
VKS- 500 Cr26 22 12x3.0 1.1KW×2 100- 220
VKS- 600 Cr26 30 12x3.0 1.5KW×2 120- 272
VKS- 700 Cr26 37 14x3.0 1.5KW×2 180- 350
